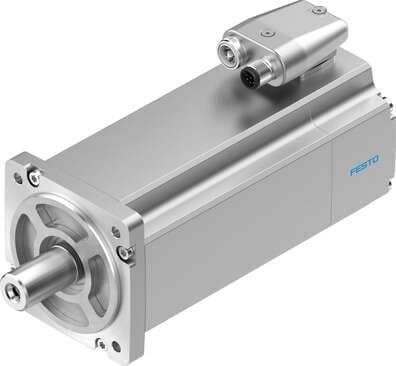

2093202 Festo Servo Motors

Product Details

• Rotor position sensor
  Absolute encoder, single-turn
• Continuous stall current
  2.2 A
• Type code
  EMME-AS
• Nominal rotary speed
  3000 1/min
• Motor constants
  1.524 Nm/A
• Motor nominal current
  2.1 A
• Peak current
  8.8 A
• Degree of protection
  IP21
• Peak torque
  14 Nm
• Rotor position sensor measuring principle
  Capacitive
• Insulation protection class
  F
• Nominal operating voltage DC
  565 V
• Rotor position encoder, sinusoidal/cosinusoidal periods per revolution
  16
• Winding inductance phase-phase
  22.8 mH
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Nominal torque
  3.2 Nm
• Permissible radial shaft load
  360 N
• Switching cycles, holding brake
  5 million idle actuations (without friction work!)
• Rotor position sensor interface
  HIPERFACE®
Brake DC operating voltage
24 V
DC nominal voltage
565 V
Typical rotor position sensor resolution
12 bit
Voltage constant, phase-to-phase
97.5 mVmin
CE marking (see declaration of conformity)
As per EU EMC directive As per EU low voltage directive
Ambient temperature
-10 °C ... 40 °C
Brake mass moment of inertia
0.222 kgcm²
Permissible axial shaft load
72 N
MTTFd, subcomponent
340 years, rotor position sensor
Number of pole pairs
3
Max. rotational speed
4097 1/min
Brake power consumption
12 W
Rotor position encoder, typical angular accuracy
20 arcmin
Rating class according to EN 60034-1
S1
Relative air humidity
0 - 90 %
Brake holding torque
4.5 Nm
MTTF, subcomponent
797 years, holding brake
Conforms to standard
IEC 60034
Motor nominal power
1000 W
Phase-phase winding resistance
9 Ohm
Type of winding switch
Star inside
Storage temperature
-20 °C ... 70 °C
Total output inertia moment
2.2 kgcm²
Stall torque
3.5 Nm
Product weight
4350 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Electrical connection technology
Plug
