19799 Festo Pneumatic Components

19799 on Powermatic Associates
Festo

Part#:19799

Alt. Part#:PPS-4-15-1/4-BL

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

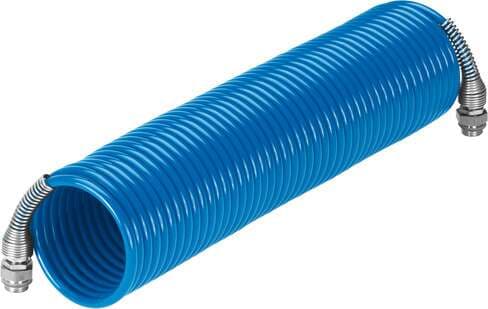

spiral plastic tubing PPS-4-15-1/4-BL With 2 rotatable fittings and sealing rings, polyamide (not approved for use in the food industry). Working length: 15 m, Outside diameter: 6,3 mm, Block length: 0,67 m, Inside diameter: 4,7 mm, Coil diameter: 75 mm

Product Details

  • Number of windings
    90
  • Block length
    0.67 m
  • Temperature-dependent operating pressure
    -0.95 bar ... 21.2 bar
  • Nominal tightening torque
    11 Nm
  • Color
    Blue
  • Antikink device material
    Steel Galvanized
  • Working length
    15 m
  • Type code
    PPS
  • Ambient temperature
    -30 °C ... 80 °C
  • Pneumatic connection 2
    External thread G1/4
  • Inside diameter
    4.7 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Tolerance for nominal tightening torque
    ± 20%
  • Product weight
    367 g
  • Outside diameter
    6.3 mm
  • Winding diameter
    75 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Material of connecting thread
    Brass
  • Pneumatic connection 1
    External thread G1/4
  • Note on materials
    RoHS-compliant
  • Material of pneumatic tubing
    PA12-P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
