19798 Festo Pneumatic Components
Part#:19798
Alt. Part#:PPS-4-7,5-1/4-BL
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

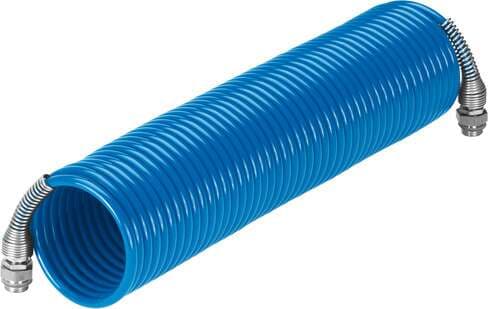

spiral plastic tubing PPS-4-7,5-1/4-BL With 2 rotatable fittings and sealing rings, polyamide (not approved for use in the food industry). Working length: 7,5 m, Outside diameter: 6,3 mm, Block length: 0,34 m, Inside diameter: 4,7 mm, Coil diameter: 75 mm
Product Details
- Type code PPS
- Ambient temperature -30 °C ... 80 °C
- Pneumatic connection 2 External thread G1/4
- Antikink device material Steel Galvanized
- Outside diameter 6.3 mm
- Number of windings 44
- Temperature-dependent operating pressure -0.95 bar ... 21.2 bar
- Nominal tightening torque 11 Nm
- Color Blue
- Material of pneumatic tubing PA12-P
- Inside diameter 4.7 mm
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Note on materials RoHS-compliant
- Block length 0.34 m
- Pneumatic connection 1 External thread G1/4
- Product weight 249 g
- Working length 7.5 m
- Winding diameter 75 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Tolerance for nominal tightening torque ± 20%
- Material of connecting thread Brass
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
