197219 Festo Valve Manifold Accessories

197219 on Powermatic Associates

Festo

Part#:197219

Manufacturer:Festo

Alt. Part#:MHP1-P6-2-PI

Product Lifecycle:Active

Get a quick Quote!

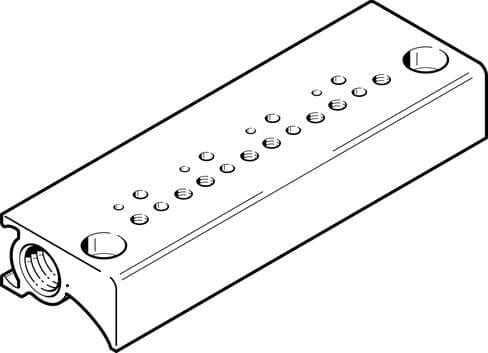

manifold block MHP1-P6-2-PI With plug bases, for semi in-line valves MHP1-...-PI Max. number of valve positions: 6, Operating pressure: 0 - 8 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medi

About the manufacturer: Festo is one of the manufacturers that offers Valve Manifold Accessories that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 197219 Festo price in the box on the right side or send a quick quote.

Product Details

Max. no. of valve positions
6
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Type code
MHP1-P6
Corrosion resistance class (CRC)
1 - Low corrosion stress
Pneumatic valve mounting type
With internal thread
Sub-base mounting type
With through-hole
Material of sub-base
Wrought aluminum alloy
Operating pressure
0 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
M7

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 197219 Specs

197219 197219 DataSheet.pdf

Manufacturer warranty
