197242 Festo Valve Manifold Accessories

Name: 197242
Brand: Festo

Part#:197242

Alt. Part#:MHP1-PR2-3-PI-PCB

Manufacturer:Festo

Category:Valve Manifold Accessories

Product Lifecycle:Active

Product description

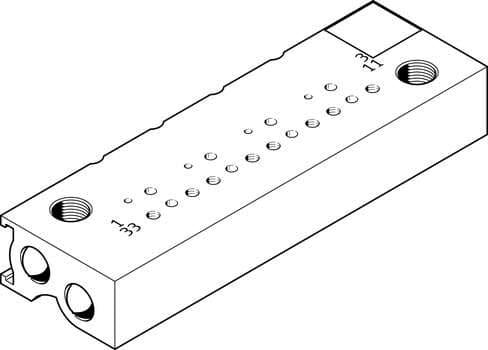

manifold block MHP1-PR2-3-PI-PCB For mounting semi in-line valves MHP1-...-PI to PCBs Max. number of valve positions: 2, Operating pressure: 0 - 8 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot

Product Details

Type code
MHP1-PR2
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
M5
Operating pressure
0 bar ... 8 bar
Ambient temperature
0 °C ... 40 °C
Pneumatic connection 3
M5
Max. no. of valve positions
2
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic valve mounting type
With internal thread
Material of sub-base
Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
