197210 Festo Pneumatic Valves Accessories

197210 on Powermatic Associates
Festo

Part#:197210

Alt. Part#:MHA1-P8-2-M3

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

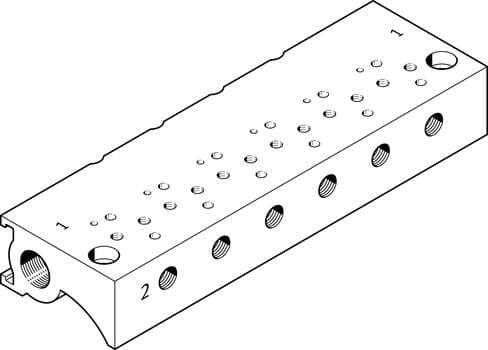

manifold block MHA1-P8-2-M3 for manifold block valves MHA1-...-HC/TC Max. number of valve positions: 8, Operating pressure: 0 - 8 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium: Lubricat

Product Details

  • Operating pressure
    0 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic valve mounting type
    With internal thread
  • Pneumatic connection 2
    M3
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Sub-base mounting type
    With through-hole
  • Pneumatic connection 1
    M7
  • Max. no. of valve positions
    8
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Material of sub-base
    Wrought aluminum alloy
  • Type code
    MHA1-P8
  • Ambient temperature
    -10 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

197210 Related Documents

197210 DataSheet.pdf
