193600 Festo Vacuum Generators

193600 on Powermatic Associates
Festo

Part#:193600

Alt. Part#:VN-07-L-T3-PQ2-VA4-RQ2

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

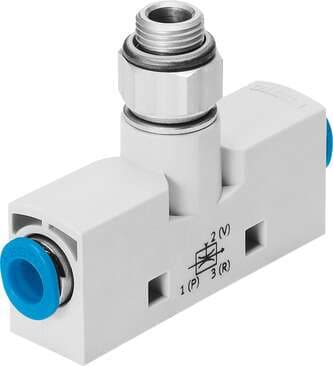

vacuum generator VN-07-L-T3-PQ2-VA4-RQ2 Standard, high suction rate, width 14 mm, T shape with push-in connector Vacuum connection with male thread. Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 14 mm, Assembly position: Any, Ejector characteristic:

Product Details

  • Product weight
    24 g
  • Material of connecting thread
    Wrought aluminum alloy
  • Mounting position
    Any
  • Operating pressure
    1 bar ... 8 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Symbol
    00991490
  • Max. suction rate with respect to atmosphere
    38.8 l/min
  • Temperature of medium
    0 °C ... 60 °C
  • Pneumatic connection 3
    QS-6
  • Female nozzle material
    POM
  • Type code
    VN
  • Operating pressure for max. suction rate
    6.2 bar
  • Air supply time at nominal operating pressure
    0.5 s
  • Pneumatic connection 1
    QS-6
  • Seals material
    NBR
  • Material of pneumatic fitting
    Brass Nickel-plated
  • Width dimension
    14 mm
  • Design
    T-shape
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    0 °C ... 60 °C
  • Type of mounting
    With through-hole With accessories
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Nominal width of Laval nozzle
    0.7 mm
  • Ejector characteristics
    High suction rate Standard
  • Nominal operating pressure
    6 bar
  • Max. tightening torque
    0.5 Nm
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Vacuum connection
    G1/8
  • Material of jet nozzle
    Wrought aluminum alloy
  • Housing material
    POM-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

193600 Related Documents
