193499 Festo Vacuum Generators

Name: 193499
Brand: Festo

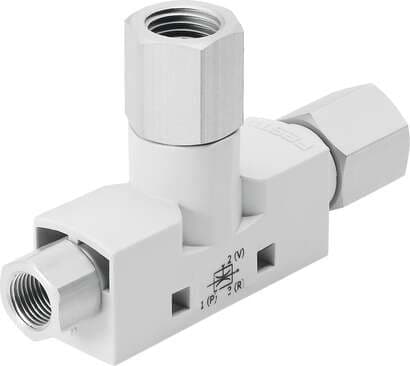

Festo 193499 vacuum generator VN-07-H-T3-PI4-VI4-RI4 Standard, high vacuum, width 14 mm, T shape with female thread Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 14 mm, Assembly position: Any, Ejector characteristic: (* High vacuum, * Standard), Design structure

Part#:193499

Manufacturer:Festo

Alt. Part#:VN-07-H-T3-PI4-VI4-RI4

Product Lifecycle:Active

Get a quick Quote!

vacuum generator VN-07-H-T3-PI4-VI4-RI4 Standard, high vacuum, width 14 mm, T shape with female thread Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 14 mm, Assembly position: Any, Ejector characteristic: (* High vacuum, * Standard), Design structure

About the manufacturer: Festo is one of the manufacturers that offers Vacuum Generators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 193499 Festo price in the box on the right side or send a quick quote.

Product Details

Mounting position
Any
Operating pressure for max. vacuum
4.7 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
0 °C ... 60 °C
Pneumatic connection 3
G1/8
Female nozzle material
POM
Nominal width of Laval nozzle
0.7 mm
Ejector characteristics
High vacuum Standard
Operating pressure for max. suction rate
2.1 bar
Max. suction rate with respect to atmosphere
16 l/min
Information on operating and pilot media
Operation with oil lubrication not possible
Product weight
22 g
Material of connecting thread
Wrought aluminum alloy, anodized
Note on materials
Free of copper and PTFE RoHS-compliant
Operating pressure
1 bar ... 8 bar
Air supply time at nominal operating pressure
1.9 s
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
0 °C ... 60 °C
Material of jet nozzle
Wrought aluminum alloy
Type code
VN

Design

T-shape

Max. tightening torque

0.5 Nm

Pneumatic connection 1

G1/8

Seals material

NBR

Width dimension

14 mm

Symbol

00991490

Nominal operating pressure

6 bar

Max. vacuum

88 %

Type of mounting

With through-hole With accessories

Vacuum connection

G1/8

Housing material

POM-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
