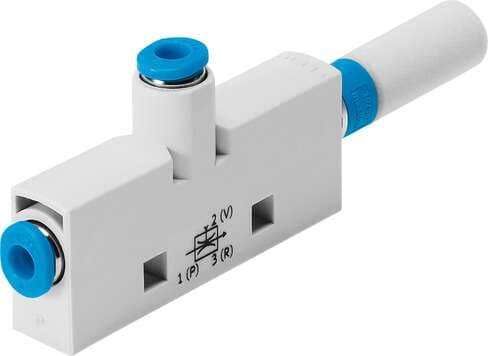

193489 Festo Vacuum Generators

Product Details

• Width dimension
  14 mm
• Mounting position
  Any
• Design
  T-shape
• Max. vacuum
  88 %
• Max. suction rate with respect to atmosphere
  16 l/min
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Ambient temperature
  0 °C ... 60 °C
• Pneumatic connection 3
  Pneumatic muffler open
• Housing material
  POM-reinforced
• Muffler material
  PE
• Type code
  VN
• Integrated function
  Pneumatic muffler open
• Operating pressure for max. vacuum
  4.7 bar
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Product weight
  24 g
• Vacuum connection
  QS-6
• Symbol
  00991489
• Nominal operating pressure
  6 bar
• Temperature of medium
  0 °C ... 60 °C
• Max. tightening torque
  0.5 Nm
Material of connecting thread
Brass, nickel-plated
Female nozzle material
POM
Material of pneumatic fitting
Brass Nickel-plated
Nominal width of Laval nozzle
0.7 mm
Ejector characteristics
High vacuum Standard
Operating pressure
1 bar ... 8 bar
Air supply time at nominal operating pressure
1.9 s
Noise level at nominal operating pressure
64 dB(A)
Type of mounting
With through-hole With accessories
Seals material
NBR
Material of jet nozzle
Wrought aluminum alloy
Muffler construction type
Open
Operating pressure for max. suction rate
2.1 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
QS-6
Note on materials
Free of copper and PTFE RoHS-compliant
