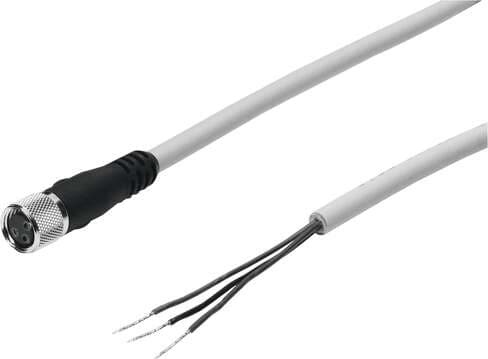

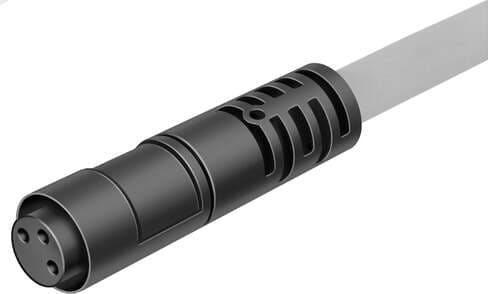

192963 Festo Cable Assemblies

Product Details

• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61984
• Electrical connection 1, design
  Round
• Electrical connection 2, function
  Control side
• Electrical connection 2, occupied pins/wires
  3
• Cable length
  10 m
• Cable diameter
  4.5 mm
• Note on degree of protection
  In mounted state
• Storage temperature
  -25 °C ... 70 °C
• Housing material
  TPE-U(PUR)
• Contact durability
  100
• Electrical connection 1, connection technology
  M8 snap-locking A-coded as per EN 61076-2-104
• Electrical connection for input 1, connection pattern
  00991871
• Electrical connection 2, number of pins/wires
  3
• Surge resistance
  1.5 kV
• Bending radius, flexible cable installation
  ≥ 46 mm
• Degree of protection
  IP65 IP67
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
• Housing colour
  Black
• Electrical connection 1, connection type
  Socket
Electrical connection 1, cable outlet
Angled
DC operating voltage range
0 V ... 60 V
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 28 mm
Cable design
3 x 0.25 mm²
Wire ends
Cable end sleeve
Contamination level
3
Insulating sheath material
PP
Type code
SIM
Electrical connection 1, function
Field device end
Electrical connection 1, occupied pins/wires
3
Electrical connection 2, connection type
Cable
Operating voltage range AC
0 V ... 60 V
Cable characteristic
Standard
Cable diameter tolerance
± 0.1 mm
Nominal conductor cross section
0.25 mm²
CE marking (see declaration of conformity)
As per EU low voltage directive
Material of cable sheath
TPE-U(PUR)
Seals material
NBR
Cable designation
Without label holder
Electrical connection 1, number of pins/wires
3
Electrical connection 1, type of mounting
Snap-locking
Electrical connection 2, connection technology
Open end
Current rating at 40°C
3 A
Bending radius, fixed cable installation
≥ 23 mm
Ambient temperature
-25 °C ... 70 °C
Note on materials
Free of copper and PTFE Halogen-free
Color cable sheath
Gray
Material of pin contacts
Brass, gold-plated
