191074 Festo Vacuum Cups
Part#:191074
Alt. Part#:ESV-30-CS
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

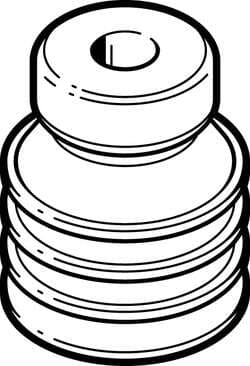

vacuum suction cup ESV-30-CS Wearing part, easily replaceable Suction cup height compensator: 10,5 mm, Min. workpiece radius: 80 mm, suction cup diameter: 30 mm, suction cup volume: 9,47 cm3, Position of connection: on top
Product Details
- Suction cup diameter 30 mm
- Connection position Top
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Color Transparent
- Note on materials Free of copper and PTFE RoHS-compliant
- Mounting position Any
- Suction cup shape Round bellows, 3.5 convolutions
- Shore hardness 50 +/- 5
- Suction cup volume 9.47 cm³
- Symbol 00991485
- Product weight 5.8 g
- Suction cup material VMQ (silicone)
- Suction cup height compensation 10.5 mm
- Type code ESV
- Ambient temperature -30 °C ... 180 °C
- Holding force at nominal operating pressure 20.8 N
- Min. workpiece radius 80 mm
- For use in the food industry See supplementary material information
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
