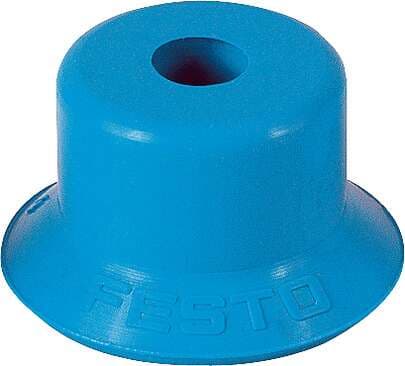

191055 Festo Vacuum Cups

191055 on Powermatic Associates
Festo

Part#:191055

Alt. Part#:ESV-20-BU

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

vacuum suction cup ESV-20-BU Wearing part, easily replaceable Suction cup height compensator: 6 mm, Min. workpiece radius: 40 mm, suction cup diameter: 20 mm, suction cup volume: 1,6 cm3, Position of connection: on top

Product Details

  • Suction cup height compensation
    6 mm
  • Type code
    ESV
  • Symbol
    00991485
  • Holding force at nominal operating pressure
    12.9 N
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Suction cup diameter
    20 mm
  • Suction cup shape
    Round bellows, 1.5 convolutions
  • Product weight
    1.9 g
  • Color
    Blue
  • Min. workpiece radius
    40 mm
  • Connection position
    Top
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Suction cup volume
    1.6 cm³
  • Mounting position
    Any
  • Ambient temperature
    -20 °C ... 60 °C
  • Suction cup material
    PUR
  • For use in the food industry
    See supplementary material information
  • Shore hardness
    60 +/- 5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
