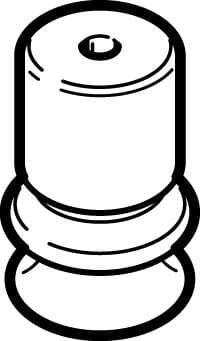

191054 Festo Vacuum Cups
Part#:191054
Alt. Part#:ESV-20-BN
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description
vacuum suction cup ESV-20-BN Wearing part, easily replaceable Suction cup height compensator: 6 mm, Min. workpiece radius: 40 mm, suction cup diameter: 20 mm, suction cup volume: 1,6 cm3, Position of connection: on top
Product Details
- Min. workpiece radius 40 mm
- Connection position Top
- Mounting position Any
- Color Black
- Suction cup height compensation 6 mm
- Suction cup shape Round bellows, 1.5 convolutions
- Holding force at nominal operating pressure 12.9 N
- Suction cup material NBR
- Suction cup diameter 20 mm
- Symbol 00991485
- Ambient temperature -10 °C ... 70 °C
- Note on materials Free of copper and PTFE RoHS-compliant
- Suction cup volume 1.6 cm³
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Product weight 1.9 g
- Type code ESV
- For use in the food industry See supplementary material information
- Shore hardness 50 +/- 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
