190893 Festo Pressure Control Valves

190893 on Powermatic Associates
Festo

Part#:190893

Manufacturer:Festo

Category:Pressure Control Valves

Alt. Part#:LRL-1/8-NPT-QS-1/4-U

Product Lifecycle:Active

Get a quick Quote!

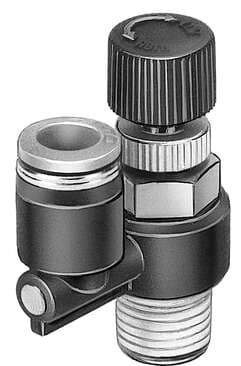

differential pressure regulator LRL-1/8-NPT-QS-1/4-U Without manometer, with male thread and QS plug connector. Controller function: Differential pressure, constant, Pneumatic connection, port 1: 1/8 NPT, Pneumatic connection, port 2: QS-1/4, Mounting t

About the manufacturer: Festo is one of the manufacturers that offers Pressure Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 190893 Festo price in the box on the right side or send a quick quote.

Product Details

  • Controller function
    Differential pressure constant
  • Pneumatic connection 2
    QS-1/4
  • Mounting position
    Any
  • Ambient temperature
    0 °C ... 60 °C
  • Type code
    LRL
  • Pneumatic connection 1
    1/8 NPT
  • Inlet pressure 1
    0 bar ... 9 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Screw-in
  • Housing material
    PBT-reinforced
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Material of screwed trunnion
    Brass
  • Symbol
    00991535
  • Product weight
    22 g
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 190893 Specs

190893 190893 DataSheet.pdf
