189390 Festo Vacuum Cups
Part#:189390
Alt. Part#:ESS-50-BN
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

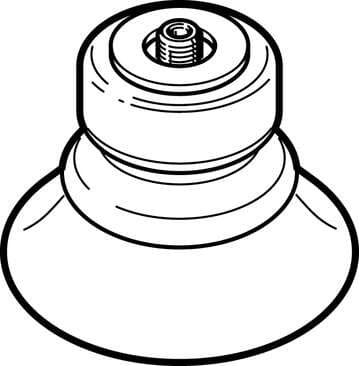

suction cup ESS-50-BN easily interchangeable, Suction cup height compensator: 11 mm, Min. workpiece radius: 150 mm, Nominal size: 3 mm, suction cup diameter: 50 mm, suction cup volume: 14,23 cm3
Product Details
- Nominal operating pressure -0.7 bar
- Lateral force at nominal operating pressure 55.5 N
- Material of screwed trunnion Wrought aluminum alloy, nickel-plated Steel, galvanized and chrome-plated
- Suction cup height compensation 11 mm
- Suction cup diameter 50 mm
- Type code ESS
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Vacuum connection M6
- Note on materials Free of copper and PTFE RoHS-compliant
- Suction cup volume 14.23 cm³
- Mounting position Any
- Operating pressure 0 bar ... 0.95 bar
- Holding force at nominal operating pressure 72.6 N
- Product weight 24.7 g
- Min. workpiece radius 150 mm
- Symbol 00991485
- Classification of suction cup holder Size 4
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- For use in the food industry See supplementary material information
- Type of mounting Via vacuum connection
- Suction cup material NBR
- Nominal width 3 mm
- Connection position Top
- Suction cup shape Round bellows, 1.5 convolutions
- Ambient temperature -10 °C ... 70 °C
- Color Black
- Shore hardness 50 +/- 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
