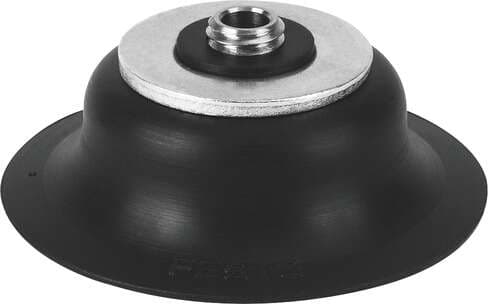

189308 Festo Vacuum Cups
Part#:189308
Alt. Part#:ESS-40-SNA
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description
suction cup ESS-40-SNA easily interchangeable, Min. workpiece radius: 230 mm, Nominal size: 3 mm, suction cup diameter: 40 mm, suction cup volume: 1,566 cm3, Position of connection: on top
Product Details
- Min. workpiece radius 230 mm
- Type code ESS
- Operating pressure 0 bar ... 0.95 bar
- Lateral force at nominal operating pressure 49 N
- Type of mounting Via vacuum connection
- Nominal width 3 mm
- Connection position Top
- Suction cup shape Round, flat
- Ambient temperature -10 °C ... 70 °C
- Shore hardness 50 +/- 5
- Suction cup material BR
- Suction cup diameter 40 mm
- Mounting position Any
- Special features Anti-static
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 16.3 g
- Color Black/white dot
- Classification of suction cup holder Size 4
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- For use in the food industry See supplementary material information
- Material of screwed trunnion Wrought aluminum alloy, nickel-plated Steel, galvanized and chrome-plated
- Note on materials Free of copper and PTFE RoHS-compliant
- Suction cup volume 1.566 cm³
- Symbol 00991485
- Nominal operating pressure -0.7 bar
- Holding force at nominal operating pressure 69.6 N
- Vacuum connection M6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
