189376 Festo Vacuum Cups
Part#:189376
Alt. Part#:ESS-10-BS
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

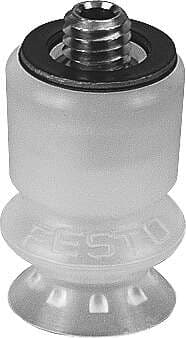

suction cup ESS-10-BS easily interchangeable, Suction cup height compensator: 4 mm, Min. workpiece radius: 20 mm, Nominal size: 2 mm, suction cup diameter: 10 mm, suction cup volume: 0,38 cm3
Product Details
- Nominal width 2 mm
- Type code ESS
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Holding force at nominal operating pressure 4.7 N
- Vacuum connection M4
- Suction cup diameter 10 mm
- Mounting position Any
- Suction cup shape Round bellows, 1.5 convolutions
- Product weight 1.8 g
- Shore hardness 50 +/- 5
- Material of screwed trunnion Brass, nickel-plated
- Suction cup height compensation 4 mm
- Suction cup volume 0.38 cm³
- Connection position Top
- Classification of suction cup holder Size 3
- Ambient temperature -30 °C ... 180 °C
- Color Transparent
- Suction cup material VMQ (silicone)
- Operating pressure 0 bar ... 0.95 bar
- Lateral force at nominal operating pressure 2.5 N
- Type of mounting Via vacuum connection
- Min. workpiece radius 20 mm
- Symbol 00991485
- Nominal operating pressure -0.7 bar
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- For use in the food industry See supplementary material information
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
