189358 Festo Vacuum Cups
Part#:189358
Alt. Part#:ESS-80-EN
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

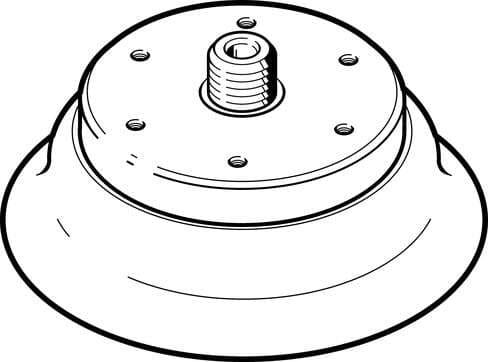

suction cup ESS-80-EN easily interchangeable, Min. workpiece radius: 160 mm, Nominal size: 6 mm, suction cup diameter: 80 mm, suction cup volume: 51,61 cm3, Position of connection: on top
Product Details
- Nominal width 6 mm
- Connection position Top
- Nominal operating pressure -0.7 bar
- Holding force at nominal operating pressure 275 N
- Vacuum connection M10
- Note on materials Free of copper and PTFE RoHS-compliant
- Symbol 00991485
- Suction cup volume 51.61 cm³
- Classification of suction cup holder Size 5
- Min. workpiece radius 160 mm
- Type code ESS
- Operating pressure 0 bar ... 0.95 bar
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Type of mounting Via vacuum connection
- Shore hardness 60 +/- 5
- Suction cup diameter 80 mm
- Mounting position Any
- For use in the food industry See supplementary material information
- Color Black
- Suction cup material NBR
- Suction cup shape Round, extra-deep
- Ambient temperature -10 °C ... 70 °C
- Product weight 141 g
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Lateral force at nominal operating pressure 216 N
- Material of screwed trunnion POM Steel, galvanized and chrome-plated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
189358 Related Documents
Manufacturer warranty
189358 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 189358 with other Vacuum Cups products
Nominal width
Connection position
Nominal operating pressur...
Holding force at nominal ...
Vacuum connection
Note on materials
Symbol
Suction cup volume
Classification of suction...
Min. workpiece radius
Selected product
189358
Festo
suction cup ESS-80-EN easily interchangeable, Min. workpiece radius: 160 mm, Nominal size: 6 mm, suc...
Nominal width6 mm
Connection positionTop
Nominal operating pressure-0.7 bar
Holding force at nominal operating pressure275 N
Vacuum connectionM10
Note on materialsFree of copper and PTFE RoHS...
Symbol00991485
Suction cup volume51.61 cm³
Classification of suction cup holderSize 5
Min. workpiece radius160 mm
36144
Festo
suction cup VAS-55-1/4-NBR With sealing ring OL. Nominal size: 4 mm, suction cup diameter: 55 mm, Ef...
Nominal width4 mm
Connection positionTop
Nominal operating pressure-
Holding force at nominal operating pressure-
Vacuum connection-
Note on materials-
Symbol00991485
Suction cup volume-
Classification of suction cup holder-
Min. workpiece radius-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Devices known as vacuum cups are utilized in the automation of manufacturing processes to effectively grasp and elevate objects. They generate suction force through pneumatic vacuum generators, thereby improving both productivity and precision. Vacuum cups come in a variety of types, including flat, oval, and bellows suction cups, each designed to manage specific surfaces and workpieces. Their fun...
