189319 Festo Vacuum Cups

189319 on Powermatic Associates
Festo

Part#:189319

Alt. Part#:ESS-80-SU

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

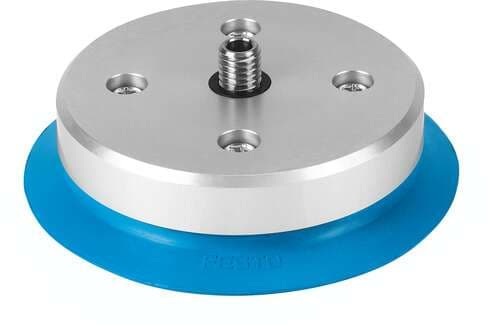

suction cup ESS-80-SU easily interchangeable, Min. workpiece radius: 400 mm, Nominal size: 6 mm, suction cup diameter: 80 mm, suction cup volume: 19,312 cm3, Position of connection: on top

Product Details

  • Classification of suction cup holder
    Size 5
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Lateral force at nominal operating pressure
    295 N
  • Suction cup volume
    19.312 cm³
  • Mounting position
    Any
  • Symbol
    00991485
  • Operating pressure
    0 bar ... 0.95 bar
  • For use in the food industry
    See supplementary material information
  • Vacuum connection
    M10
  • Min. workpiece radius
    400 mm
  • Type code
    ESS
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    133 g
  • Type of mounting
    Via vacuum connection
  • Material of screwed trunnion
    POM Steel, galvanized and chrome-plated
  • Suction cup diameter
    80 mm
  • Suction cup shape
    Round, flat
  • Ambient temperature
    -20 °C ... 60 °C
  • Color
    Blue
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Nominal width
    6 mm
  • Connection position
    Top
  • Nominal operating pressure
    -0.7 bar
  • Holding force at nominal operating pressure
    309.7 N
  • Shore hardness
    60 +/- 5
  • Suction cup material
    PUR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

189319 Related Documents

189319 DataSheet.pdf
