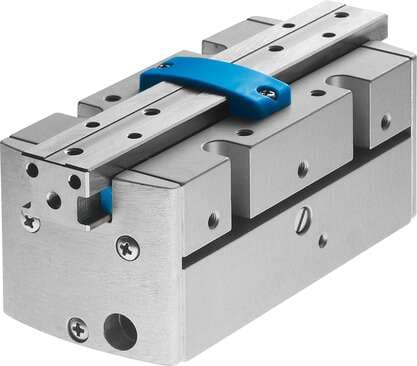

187874 Festo Grippers

Product Details

• Max. interchangeability
  0.1 mm
• Gripping force backup
  On opening
• Symbol
  00995947
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Type code
  HGPP
• Max. operating frequency of pneumatic gripper
  4 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  14 Nm
• Cover cap material
  POM
• Design
  Gear rack/pinion
• Min. opening time at 6 bar
  45 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Product weight
  611 g
• Gripper jaw material
  Wrought aluminum alloy Nickel-plated
• Stroke per gripper jaw
  7.5 mm
• Number of gripper jaws
  2
• Mode of operation
  Double-acting
• Operating pressure
  5 bar ... 8 bar
• Min. closing time at 6 bar
  92 ms
• Maximum torque on gripper jaw, Mx static
  14 Nm
Max. mass per external gripper finger
200 g
Note on materials
Free of copper and PTFE
Size
20
Gripper function
Parallel
Position sensing
For Hall sensor For inductive proximity sensors
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, My static
14 Nm
Type of mounting
With internal thread
Housing material
Wrought aluminum alloy Hard-anodized
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum force on gripper jaw Fz, static
220 N
Pneumatic connection
M5
