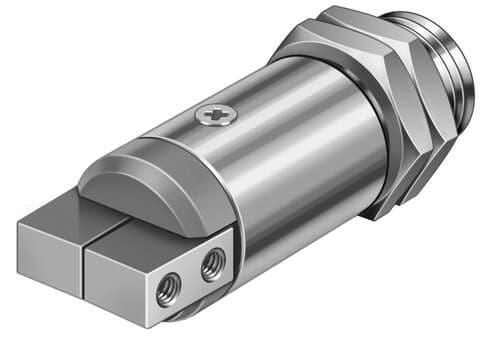

185703 Festo Grippers

Product Details

• Max. gripper jaw backlash Sz
  0.03 mm
• Mode of operation
  Single-acting Closed
• Max. opening angle
  14 deg
• Type code
  HGWM
• Min. closing time at 6 bar
  2.8 ms
• Total gripping torque at 6 bar, opening
  76 Ncm
• Maximum torque on gripper jaw, My static
  0.4 Nm
• Note on materials
  Free of copper and PTFE
• Housing material
  High-alloy stainless steel
• Max. gripper jaw angular play ax, ay
  0.5 deg
• Number of gripper jaws
  2
• Design
  Inclined plane
• Max. operating frequency of pneumatic gripper
  4 Hz
• Min. opening time at 6 bar
  1.7 ms
• Maximum torque on gripper jaw, Mx static
  0.4 Nm
• Product weight
  52 g
• Size
  12
• Gripper function
  Angle
• Symbol
  00991898
• Position sensing
  None
Spring return torque
0.015 Nm
Ambient temperature
5 °C ... 60 °C
Type of mounting
With lock nut
Gripper jaw material
High-alloy steel
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Operating pressure
2 bar ... 8 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum torque on gripper jaw, Mz static
0.4 Nm
Pneumatic connection
M3
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Maximum force on gripper jaw Fz, static
20 N
Cover cap material
POM
