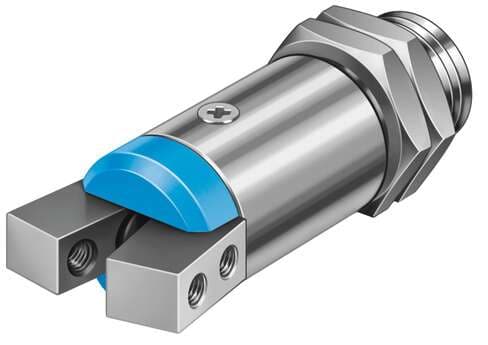

185700 Festo Grippers

Product Details

• Gripper function
  Angle
• Number of gripper jaws
  2
• Symbol
  00991897
• Min. closing time at 6 bar
  1.8 ms
• Spring return torque
  0.013 Nm
• Maximum torque on gripper jaw, Mx static
  0.4 Nm
• Pneumatic connection
  M3
• Cover cap material
  POM
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum force on gripper jaw Fz, static
  20 N
• Housing material
  High-alloy stainless steel
• Max. opening angle
  18.5 deg
• Operating pressure
  2 bar ... 8 bar
• Max. operating frequency of pneumatic gripper
  4 Hz
• Maximum torque on gripper jaw, My static
  0.4 Nm
• Type of mounting
  With lock nut
• Gripper jaw material
  High-alloy steel
• Max. gripper jaw angular play ax, ay
  0.5 deg
• Mode of operation
  Single-acting Open
Position sensing
None
Min. opening time at 6 bar
3.7 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.4 Nm
Note on materials
Free of copper and PTFE
Size
12
Max. gripper jaw backlash Sz
0.03 mm
Type code
HGWM
Design
Inclined plane
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Total gripping torque at 6 bar, closing
64 Ncm
Product weight
52 g

Related documents 185700 Specs
