185521 Festo Electrical Connectors
Part#:185521
Alt. Part#:MSSD-ZBZC
Manufacturer:Festo
Category:Electrical Connectors
Product Lifecycle:Active
Product description

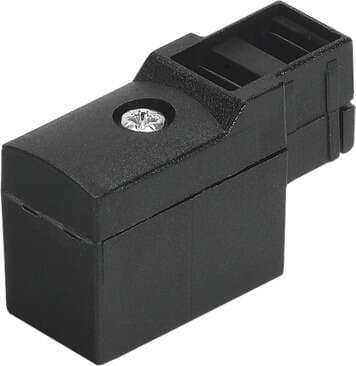

plug socket MSSD-ZBZC For valves CPE10, CPE14, MZBH, MOZBH. Maritime classification: see certificate, Mounting type: On solenoid valve with self-tapping screw, Assembly position: Any, Product weight: 11 g, Electrical connection: Plug socket
Product Details
- Type code MSSD
- DC operating voltage range 3 V ... 36 V
- Note on materials RoHS-compliant
- Maritime classification See certificate
- Nominal operating voltage DC 24 V
- Ambient temperature -10 °C ... 50 °C
- Degree of protection IP50
- Housing material PA
- Product weight 11 g
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type of mounting On air solenoid valve with self-tapping screw
- Electrical connection Socket
- Nominal conductor cross section 0.22 mm² ... 0.34 mm²
- Mounting position Any
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
185521 Related Documents
Similar products from: Festo Electrical Connectors
Manufacturer warranty
185521 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 185521 with other Electrical Connectors products
Type code
DC operating voltage rang...
Note on materials
Maritime classification
Nominal operating voltage...
Ambient temperature
Degree of protection
Housing material
Product weight
Corrosion resistance clas...
Selected product
185521
Festo
plug socket MSSD-ZBZC For valves CPE10, CPE14, MZBH, MOZBH. Maritime classification: see certificate...
Type codeMSSD
DC operating voltage range3 V ... 36 V
Note on materialsRoHS-compliant
Maritime classificationSee certificate
Nominal operating voltage DC24 V
Ambient temperature-10 °C ... 50 °C
Degree of protectionIP50
Housing materialPA
Product weight11 g
Corrosion resistance class (CRC)1 - Low corrosion stress
34431
Festo
plug socket MSSD-F For solenoid coils and valves, standard industry port pattern. Mounting type: On ...
Type codeMSSD
DC operating voltage range-
Note on materials-
Maritime classification-
Nominal operating voltage DC-
Ambient temperature-25 °C ... 90 °C
Degree of protectionIP65
Housing material-
Product weight17 g
Corrosion resistance class (CRC)-
1411586
Phoenix Contact
Flush-type connector, Universal, 5-position, Socket, M12, A-coded, Rear mounting, M16 x 1.5, Individ...
Type code-
DC operating voltage range-
Note on materials-
Maritime classification-
Nominal operating voltage DC-
Ambient temperature-
Degree of protectionIP67
Housing material-
Product weight-
Corrosion resistance class (CRC)-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Electrical connectors, which are crucial components for connecting circuit subsections, enable easy disconnection when required. They are typically used for power inputs, peripheral connections, and interchangeable boards.
