173894 Festo Compressed Air Preparation Units
Part#:173894
Alt. Part#:HE-3/8-D-MINI-NPT
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

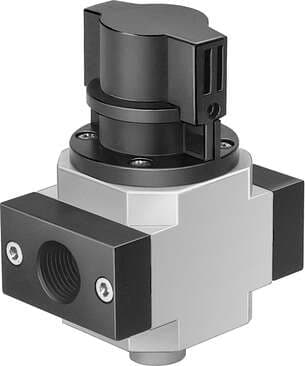

on-off valve HE-3/8-D-MINI-NPT For service units, with threaded connecting plate Grid dimension: 40 mm, Design structure: Piston slide, Type of actuation: manual, Sealing principle: soft, Exhaust-air function: not throttleable
Product Details
- Width dimension 40 mm
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Mounting position Any
- Product weight 192 g
- Type code HE
- Flow direction Non-reversible
- Housing material Die-cast aluminum
- Design Piston gate valve
- Symbol 00995571
- Valve function 3/2, bistable
- b-value 0.27
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Note on materials RoHS-compliant
- Pneumatic connection 2 3/8 NPT
- Seals material NBR
- Actuation type Manual
- Manual override None
- Exhaust air function Without flow control option
- Standard nominal flow rate 1600 l/min
- Temperature of medium -10 °C ... 60 °C
- Ambient temperature -10 °C ... 60 °C
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Sealing principle Soft
- Operating pressure 0 bar ... 16 bar
- C value 7.5 l/sbar
- Duty cycle 100%
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Line installation With accessories
- Pneumatic connection 1 3/8 NPT
- Pneumatic connection 3 G1/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
