173696 Festo Compressed Air Preparation Units

173696 on Powermatic Associates
Festo

Part#:173696

Alt. Part#:LF-3/4-D-MIDI-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

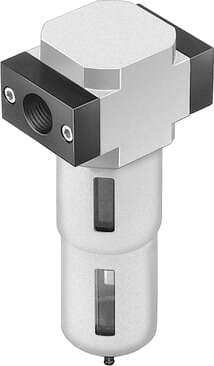

filter LF-3/4-D-MIDI-NPT With metal bowl guard. Size: Midi, Series: D, Assembly position: Vertical, Grade of filtration: 40 µm, Condensate drain: manual momentary-contact

Product Details

  • Type code
    LF
  • Condensate drain
    Manual, non-detenting
  • Symbol
    00991519
  • Grade of filtration
    40 µm
  • Max. condensate volume
    43 ml
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Type of mounting
    Optionally: With mounting bracket
  • Pneumatic connection 2
    3/4 NPT
  • Series
    D
  • Mounting position
    Vertical
  • Operating pressure
    0 bar ... 16 bar
  • Pneumatic connection 1
    3/4 NPT
  • Size
    Midi
  • Bowl guard
    Metal bowl guard
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Housing material
    Die-cast zinc
  • Standard nominal flow rate
    3000 l/min
  • Storage temperature
    -10 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • Material of bowl
    PC
  • Note on materials
    RoHS-compliant
  • Temperature of medium
    -10 °C ... 60 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Compressed air filter material
    PE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
