173650 Festo Compressed Air Preparation Units

173650 on Powermatic Associates
Festo

Part#:173650

Alt. Part#:LR-1/4-D-7-MINI-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

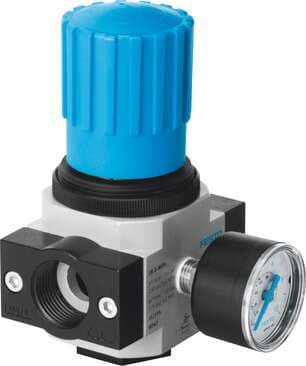

pressure regulator LR-1/4-D-7-MINI-NPT With pressure gauge, working pressure up to 7 bar. Size: Mini, Series: D, Operating medium: (* Compressed air in accordance with ISO8573-1:2010 [7:4:4], * Inert gases), Note on operating and pilot medium: Lubricated

Product Details

  • Symbol
    00991538
  • Note on materials
    RoHS-compliant
  • Size
    Mini
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    1/4 NPT
  • Series
    D
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Type code
    LR
  • Pneumatic connection 1
    1/4 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

173650 Related Documents

173650 DataSheet.pdf
