173675 Festo Compressed Air Preparation Units

173675 on Powermatic Associates
Festo

Part#:173675

Alt. Part#:LR-1-D-7-O-MAXI-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

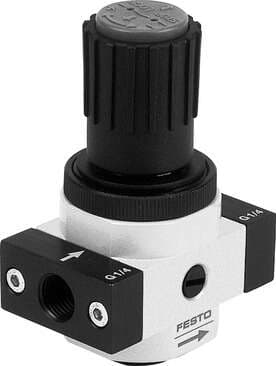

pressure regulator LR-1-D-7-O-MAXI-NPT Without threaded connection plate, connector thread in housing, without pressure gauge Size: Maxi, Series: D, Assembly position: Any, Controller function: Output pressure constant, Operating pressure: 16 bar

Product Details

  • Size
    Maxi
  • Mounting position
    Any
  • Operating pressure
    16 bar
  • Type code
    LR
  • Controller function
    Outlet pressure constant
  • Standard nominal flow rate
    12500 l/min
  • Product weight
    1100 g
  • Housing material
    Die-cast zinc
  • Series
    D
  • Symbol
    00991559
  • Max. pressure hysteresis
    0.4 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    1 NPT
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    1 NPT
  • Type of mounting
    Optionally: Line installation

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

173675 Related Documents

173675 DataSheet.pdf
