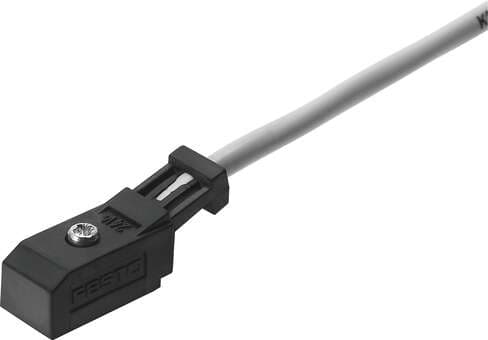

165612 Festo Pneumatic Components
Part#:165612
Alt. Part#:KRP-1-24-2,5
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description
connecting cable KRP-1-24-2,5 Connector socket for relay plate for valve terminal CPV with cable. Mounting type: with through hole, Assembly position: Any, Product weight: 49 g, Electrical connection: (* 2-pin, * Plug socket angled), Operating voltage ran
Product Details
- Electrical connection 2-pin Socket, angled
- Cable length 2.5 m
- Material of cable sheath PVC
- CE marking (see declaration of conformity) As per EU RoHS directive
- Product weight 49 g
- Cable diameter 3.5 mm
- Ambient temperature -10 °C ... 50 °C
- DC operating voltage range ≤ 26 V
- Housing material PUR
- Type of mounting With through-hole
- Current rating 1 A
- Degree of protection IP65
- Material of pin contacts Bronze
- Type code KRP
- Operating voltage range AC ≤ 20 V
- Cable design 2 x 0.25 mm²
- Mounting position Any
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
