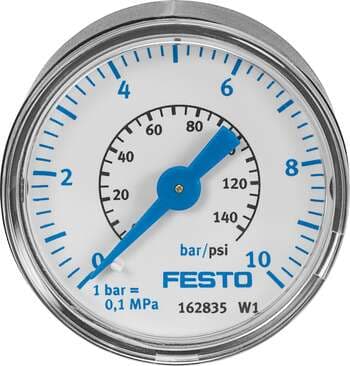

162835 Festo Pressure Gauges

Name: 162835
Brand: Festo

Part#:162835

Alt. Part#:MA-40-10-1/8-EN

Manufacturer:Festo

Category:Pressure Gauges

Product Lifecycle:Active

Product description

pressure gauge MA-40-10-1/8-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation

Product Details

Symbol
00991463
Design
Bourdon tube pressure gauge
Operating pressure
0 bar ... 10 bar
Ambient temperature
-20 °C ... 60 °C
Housing material
PBT
Product weight
60 g
Temperature of medium
-20 °C ... 60 °C
Pneumatic connection
R1/8
Material of screwed trunnion
Brass
Housing colour
Black
Conforms to standard
EN 837-1
Type of mounting
Line installation
Operating medium
Inert gas Neutral liquids
Measurement accuracy class
2.5
Degree of protection
IP43
Materials in contact with the media
Brass
Inspection window material
PS
Display range
0 bar ... 10 bar
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Pressure gauge nominal size
40

Intermittent load factor

0.66

Note on materials

RoHS-compliant

Connection position

Centered on rear side

Information on operating and pilot media

No acetylene No oxygen

Type code

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
