159587 Festo Compressed Air Preparation Units

159587 on Powermatic Associates
Festo

Part#:159587

Alt. Part#:LOE-1/2-D-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

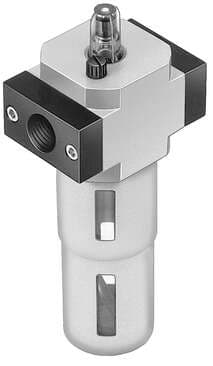

lubricator LOE-1/2-D-MIDI With metal bowl guard. Size: Midi, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 110 cm3

Product Details

  • Type code
    LOE
  • Design
    Proportional standard oil mist lubricator
  • Minimum flow rate for lubricator function
    8 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G1/2
  • Symbol
    00991532
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
  • Pneumatic connection 1
    G1/2
  • Series
    D
  • Max. oil capacity
    110 cm³
  • Standard nominal flow rate
    6100 l/min
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Temperature of medium
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Size
    Midi
  • Bowl guard
    Metal bowl guard
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Operating pressure
    0 bar ... 16 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Product weight
    630 g
  • Material of bowl
    PC
  • Type of mounting
    With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

159587 Related Documents

159587 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock
162684 on Powermatic Associates

162684

Festo

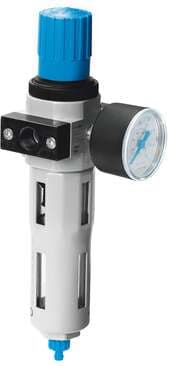

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
529609 on Powermatic Associates

529609

Festo

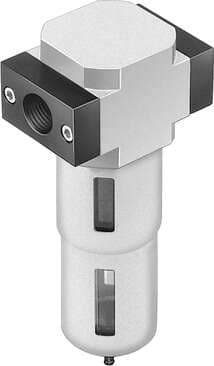

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom
