159502 Festo Compressed Air Preparation Units

159502 on Powermatic Associates
Festo

Part#:159502

Alt. Part#:LRP-1/4-10

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

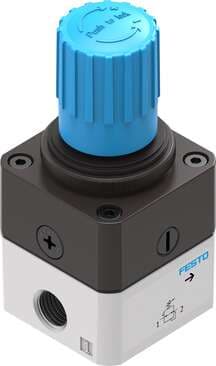

precision pressure regulator LRP-1/4-10 Without pressure gauge. Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: Piloted precision diaphragm regulator, Controller function: (* Output pressure constant, * with secondary exhau

Product Details

  • Mounting position
    Any
  • Pressure regulation range
    0.1 bar ... 10 bar
  • Actuator lock
    Rotary knob with detent
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Seals material
    NBR
  • Type code
    LRP
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Pressure gauge
    G1/8 prepared
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    Front panel mounting With accessories
  • Pneumatic connection 2
    G¼
  • Design
    Pilot-controlled precision diaphragm regulator
  • Symbol
    00991540
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Temperature of medium
    -10 °C ... 60 °C
  • Housing material
    Aluminum
  • Operating pressure
    0.1 MPa ... 1.2 MPa
  • Max. pressure hysteresis
    0.02 bar
  • Product weight
    310 g
  • Pneumatic connection 1
    G1/4
  • Standard nominal flow rate
    2300 l/min
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

159502 Related Documents

159502 DataSheet.pdf
