159425 Festo Cable Assemblies

159425 on Powermatic Associates
Festo

Part#:159425

Alt. Part#:SIM-M8-3WD-5-PSL-PU

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

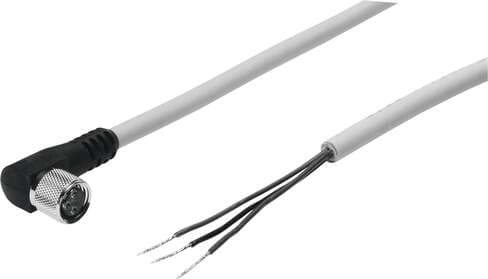

connecting cable SIM-M8-3WD-5-PSL-PU For sensors and proximity switches. Conforms to standard: (* EN 61076-2-104, * EN 61984), Ready status display: Green LED, Operating status display: Yellow LED, Electrical connection: (* 3-pin/3-wire, * Angled socket/o

Product Details

  • Conforms to standard
    EN 61076-2-104 EN 61984
  • DC operating voltage range
    10 V ... 30 V
  • Surge resistance
    0.8 kV
  • Ambient temperature with flexible cable installation
    -5 °C ... 80 °C
  • Note on materials
    RoHS-compliant Free of phosphoric acid ester
  • Material of union nut
    Brass Nickel-plated
  • Type code
    SIM
  • Switching status indication
    LED yellow
  • Current rating at 40°C
    4 A
  • Connector cable test conditions
    Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
  • Wire insulation color code
    Blue Black
  • Degree of protection
    IP65 IP68
  • Color cable sheath
    Gray
  • Insulating sheath material
    PP
  • Material of pin contacts
    Brass, gold-plated
  • Ready status indication
    LED green
  • Material of cable sheath
    TPE-U(PU)
  • Housing colour
    Black
  • Electrical connection
    3-pin/3-wire M8x1 / -
  • Cable length
    5 m
  • Cable design
    3 x 0.25 mm²
  • Ambient temperature
    -25 °C ... 80 °C
  • Contamination level
    3
  • Housing material
    TPE-U(PU)
  • Cable characteristic
    Standard
  • Nominal conductor cross section
    0.25 mm²
  • Cable diameter
    3.8 mm
  • CE marking (see declaration of conformity)
    As per EU RoHS directive
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Seals material
    NBR
  • Symbol
    00995371

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
