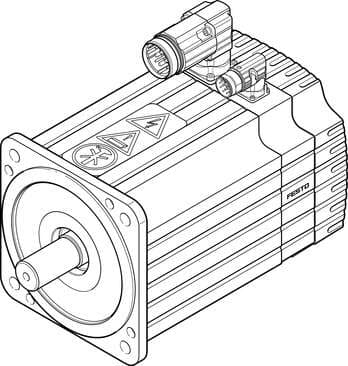

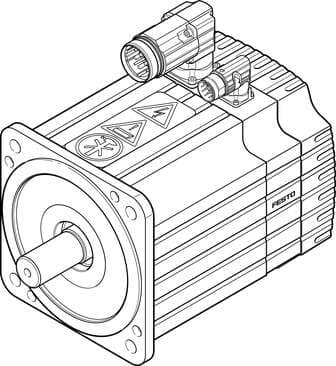

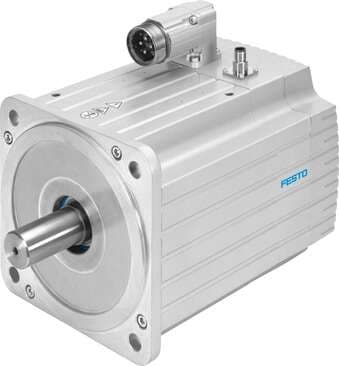

1584922 Festo Servo Motors

1584922 on Powermatic Associates
Festo

Part#:1584922

Alt. Part#:EMMS-AS-190-S-HS-AS-S1

Manufacturer:Festo

Category:Servo Motors

Product Lifecycle:Active

Product description

servo motor EMMS-AS-190-S-HS-AS-S1 Without gear unit. Ambient temperature: -10 - 40 °C, Storage temperature: -20 - 60 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F

Product Details

  • Rotor position sensor
    Absolute encoder, single-turn
  • Max. rotational speed
    5300 1/min
  • Motor nominal power
    5490 W
  • Rotor position sensor interface
    EnDat® 21
  • Insulation protection class
    F
  • DC nominal voltage
    565 V
  • Type code
    EMMS-AS
  • Temperature monitoring
    PTC resistor
  • Nominal rotary speed
    3000 1/min
  • Winding inductance phase-phase
    3.07 mH
  • Rating class according to EN 60034-1
    S1
  • Ambient temperature
    -10 °C ... 40 °C
  • Nominal torque
    17.47 Nm
  • Permissible radial shaft load
    940 N
  • Electrical connection technology
    Plug
  • Motor constants
    1.211 Nm/A
  • Motor nominal current
    14.43 A
  • Peak current
    77.2 A
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Permissible axial shaft load
    250 N
  • Number of pole pairs
    6
  • Rotor position sensor measuring principle
    Inductive
  • Nominal operating voltage DC
    565 V
  • Rotor position sensor resolution
    18 bit
  • Type of winding switch
    Star inside
  • Storage temperature
    -20 °C ... 60 °C
  • Total output inertia moment
    51.9 kgcm²
  • Stall torque
    26.2 Nm
  • MTTFd, subcomponent
    152 years, rotor position sensor
  • Conforms to standard
    IEC 60034
  • Phase-phase winding resistance
    0.283 Ohm
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU low voltage directive
  • Relative air humidity
    0 - 90 %
  • MTTF, subcomponent
    76 years, rotor position sensor
  • Product weight
    20860 g
  • Voltage constant, phase-to-phase
    75.4 mVmin
  • Degree of protection
    IP65
  • Peak torque
    80 Nm
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
