153951 Festo Pneumatic Fittings

153951 on Powermatic Associates
Festo

Part#:153951

Alt. Part#:QSR-1/8-5/32-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

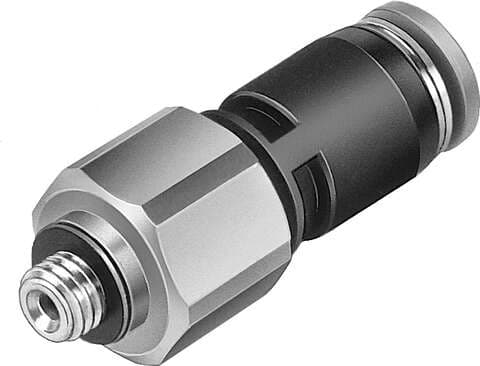

rotary push-in fitting QSR-1/8-5/32-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 2,1 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Product Details

  • Size
    Standard
  • Design
    Push-pull principle
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    external thread 1/8 NPT
  • Material of tubing seal
    NBR
  • Type code
    QSR
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Housing material
    PBT
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Product weight
    15 g
  • Nominal width
    2.1 mm
  • Mounting position
    Any
  • Pack size
    1
  • Releasing ring color
    Gray
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 5/32"
  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Coating
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Max. tightening torque
    8 Nm
  • Note on materials
    RoHS-compliant
  • Releasing ring material
    POM
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
