153516 Festo Pressure Control Valves

153516 on Powermatic Associates
Festo

Part#:153516

Manufacturer:Festo

Category:Pressure Control Valves

Alt. Part#:LRL-1/4-QS-8

Product Lifecycle:Active

Get a quick Quote!

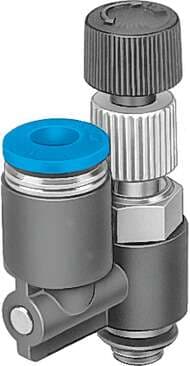

differential pressure regulator LRL-1/4-QS-8 Without manometer, with male thread and QS plug connector. Controller function: (* Differential pressure, constant, * with return flow), Pneumatic connection, port 1: G1/4, Pneumatic connection, port 2: QS-8,

About the manufacturer: Festo is one of the manufacturers that offers Pressure Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 153516 Festo price in the box on the right side or send a quick quote.

Product Details

  • Pneumatic connection 2
    QS-8
  • Ambient temperature
    0 °C ... 60 °C
  • Housing material
    PBT-reinforced
  • Symbol
    00991535
  • Material of screwed trunnion
    Brass Nickel-plated
  • Type code
    LRL
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 1
    G1/4
  • Pressure regulation range
    2 bar ... 6 bar
  • Design
    Directly controlled piston regulator with continuous compressed air supply
  • Product weight
    39 g
  • Type of mounting
    Screw-in
  • Nominal flow rate, open
    224 l/min
  • Mounting position
    Any
  • Nominal flow rate, closed
    224 l/min
  • Material of threaded seal
    PTFE
  • Controller function
    Differential pressure constant With return flow function
  • Inlet pressure 1
    0 bar ... 9 bar
  • Actuator lock
    Counter-locking
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 153516 Specs

153516 153516 DataSheet.pdf
