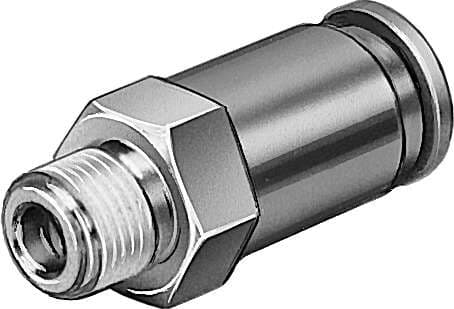

153457 Festo Stop Valves (non-return)
Part#:153457
Alt. Part#:HB-3/8-QS-10
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description
non-return valve HB-3/8-QS-10 Flow rate from the QS plug connector to the male thread. Valve function: Non-return function, Pneumatic connection, port 1: QS-10, Pneumatic connection, port 2: R3/8, Mounting type: Threaded, Standard nominal flow rate: 170
Product Details
- Symbol 00991455
- Type of mounting Screw-in
- Standard nominal flow rate 1700 l/min
- Ambient temperature 0 °C ... 60 °C
- Note on materials RoHS-compliant
- Type code HB
- Pneumatic connection 1 QS-10
- Housing material Aluminum, anodized
- Operating pressure -1 bar ... 10 bar
- Product weight 47 g
- Housing colour Silver
- Pneumatic connection 2 R3/8
- Min. differential pressure, opening 0.1 bar
- Valve function Non-return function
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Min. differential pressure, closing 0.2 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
