153201 Festo Pneumatic Fittings

153201 on Powermatic Associates
Festo

Part#:153201

Alt. Part#:QST3-1/4-8-6

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

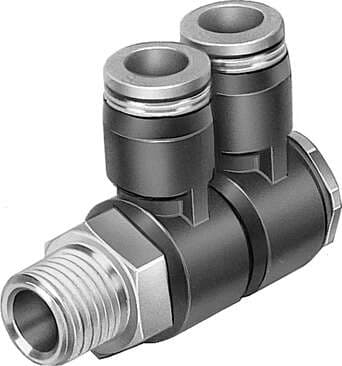

multiple distributor QST3-1/4-8-6 360° orientable, 4 outlets. Size: Standard, Nominal size: 4,6 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Product Details

  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Product weight
    35 g
  • Releasing ring color
    Blue
  • Nominal width
    4.6 mm
  • Mounting position
    Any
  • Operating pressure for entire temperature range
    -0.95 bar ... 6 bar
  • Ambient temperature
    -10 °C ... 80 °C
  • Note on materials
    RoHS-compliant
  • Type code
    QST3
  • Pack size
    1
  • No. of supply lines
    1
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 6 mm for pneumatic tubing outside diameter 8 mm
  • Size
    Standard
  • Design
    Push-pull principle
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Pneumatic connection 1
    External thread R1/4
  • Material of tubing seal
    NBR
  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Coating
  • Temperature-dependent operating pressure
    -0.95 bar ... 14 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • No. of outlets
    4
  • Housing material
    PBT
  • Material of tube retaining claw
    High-alloy stainless steel
  • Releasing ring material
    POM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
