151174 Festo Stop Valves (non-return)

151174 on Powermatic Associates
Festo

Part#:151174

Alt. Part#:GRLA-1/4-PK-6-B

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

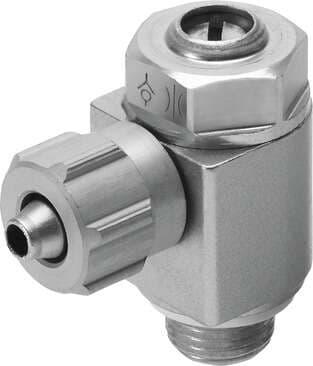

one-way flow control valve GRLA-1/4-PK-6-B Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: Male thread G1/4, Pneumatic connection, port 2: for barbed connector internal diameter 6 mm with nut, Adjusting eleme

Product Details

  • Type code
    GRLA
  • Adjusting element
    Slotted screw
  • Symbol
    00991452
  • Pneumatic connection 1
    External thread G1/4
  • Pneumatic connection 2
    for barbed fitting, inside diameter 6 mm, with nut
  • Valve function
    Exhaust air flow control non-return function
  • Maritime classification
    See certificate
  • Standard nominal flow rate in flow control direction
    540 l/min
  • Mounting position
    Any
  • Explosion prevention and protection
    Observe the information on the certificate Zone 22 (ATEX)
  • Material of adjusting screw
    Brass
  • Standard nominal flow rate in non-return direction
    410 l/min ... 585 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Operating pressure for entire temperature range
    0.3 bar ... 10 bar
  • Max. tightening torque
    11 Nm
  • Type of mounting
    Screw-in
  • Standard flow rate in flow control direction 6 -> 0 bar
    840 l/min
  • Standard flow rate in non-return direction at 6 -> 0 bar
    635 l/min ... 910 l/min
  • Product weight
    45 g
  • Swivel joint material
    Die-cast zinc
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    RoHS-compliant
  • Material of screwed trunnion
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
