151169 Festo Stop Valves (non-return)

151169 on Powermatic Associates
Festo

Part#:151169

Alt. Part#:GRLA-1/8-RS-B

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

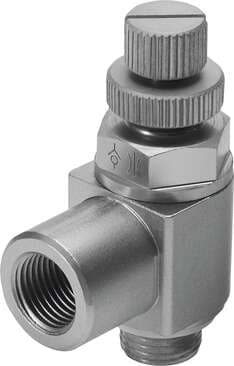

one-way flow control valve GRLA-1/8-RS-B With knurled screw and lock nut Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: G1/8, Pneumatic connection, port 2: G1/8, Adjusting element: Knurled screw, Mounting ty

Product Details

  • Ambient temperature
    -10 °C ... 60 °C
  • Mounting position
    Any
  • Product weight
    30 g
  • Max. tightening torque
    6 Nm
  • Adjusting element
    Knurled screw
  • Standard nominal flow rate in flow control direction
    340 l/min
  • Standard flow rate in flow control direction 6 -> 0 bar
    615 l/min
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant
  • Type code
    GRLA
  • Pneumatic connection 1
    G1/8
  • Symbol
    00991452
  • Standard flow rate in non-return direction at 6 -> 0 bar
    470 l/min ... 760 l/min
  • Seals material
    NBR
  • Valve function
    Exhaust air flow control non-return function
  • Standard nominal flow rate in non-return direction
    260 l/min ... 420 l/min
  • Explosion prevention and protection
    Observe the information on the certificate Zone 22 (ATEX)
  • Temperature of medium
    -10 °C ... 60 °C
  • Material of adjusting screw
    Brass
  • Maritime classification
    See certificate
  • Pneumatic connection 2
    G1/8
  • Type of mounting
    Screw-in
  • Operating pressure for entire temperature range
    0.3 bar ... 10 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Material of screwed trunnion
    Wrought aluminum alloy
  • Swivel joint material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
