151163 Festo Stop Valves (non-return)
Part#:151163
Alt. Part#:GRLA-M5-RS-B
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description

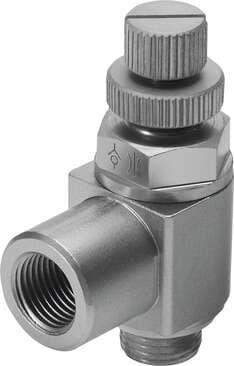

one-way flow control valve GRLA-M5-RS-B With knurled screw and lock nut Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: M5, Pneumatic connection, port 2: M5, Adjusting element: Knurled screw, Mounting type: T
Product Details
- Type code GRLA
- Pneumatic connection 2 M5
- Pneumatic connection 1 M5
- Type of mounting Screw-in
- Mounting position Any
- Temperature of medium -10 °C ... 60 °C
- Valve function Exhaust air flow control non-return function
- Adjusting element Knurled screw
- Ambient temperature -10 °C ... 60 °C
- Standard flow rate in non-return direction at 6 -> 0 bar 135 l/min ... 170 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials RoHS-compliant
- Material of adjusting screw Brass
- Maritime classification See certificate
- Standard nominal flow rate in non-return direction 76 l/min ... 95 l/min
- Symbol 00991452
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Max. tightening torque 1.5 Nm
- Standard nominal flow rate in flow control direction 95 l/min
- Standard flow rate in flow control direction 6 -> 0 bar 169 l/min
- Nominal width 2 mm
- Material of screwed trunnion Nickel-plated
- Swivel joint material Die-cast zinc
- Operating pressure 0.2 bar ... 10 bar
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Product weight 12 g
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
