1489992 Festo Process & Media Valves
Part#:1489992
Alt. Part#:VZWP-L-M22C-N12-130-3AP4-40
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

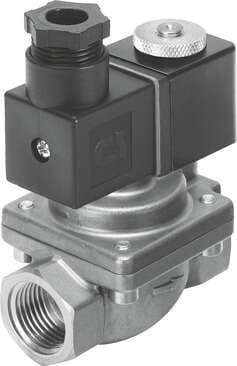

solenoid valve VZWP-L-M22C-N12-130-3AP4-40 Servo-controlled, with piston, NPT1/2" connection. Design structure: Pilot-actuated piston poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Coil preferably on top, Mounting
Product Details
- Sealing principle Soft
- Nominal width 13 mm
- Type of mounting Line installation
- Flow direction Non-reversible
- Permissible voltage fluctuations +/- 10 %
- Symbol 00992974
- Standard nominal flow rate 2650 l/min
- Actuation type Electrical
- Mounting position Coil preferably on top
- Manual override None
- Insulation class H
- Medium pressure 0.5 bar ... 40 bar
- Ambient temperature -10 °C ... 35 °C
- On switching time 100 ms
- Seals material NBR
- CE marking (see declaration of conformity) As per EU low voltage directive
- Type code VZWP
- Electrical connection Form A Rectangular design
- Valve function 2/2, closed, monostable
- Differential pressure 0.5 bar
- Duty cycle 100%
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Design Pilot-controlled piston poppet valve
- Fitting connection 1/2 NPT
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
- Nominal pressure of fitting PN 40
- Type of control Pilot-controlled
- Leak rate to EN 12266-1 A
- Material number of housing CW617N
- Product weight 550 g
- Coil characteristics 230 V AC: 50/60 Hz, initial power 10.5 VA, holding power 7.6 VA
- Max. viscosity 22 mm²/s
- Flow rate Kv 2.5 m³/h
- Switching time off 250 ms
- Housing material Cast brass
- Degree of protection IP65
- Temperature of medium -10 °C ... 80 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of screws High-alloy stainless steel
- Material number of screw 1.4301
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
