1489973 Festo Process & Media Valves
Part#:1489973
Alt. Part#:VZWP-L-M22C-N34-250-1P4-40
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

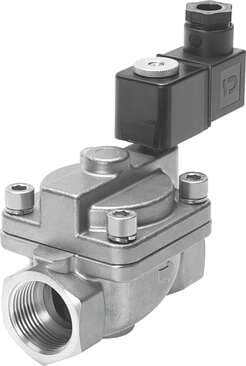

solenoid valve VZWP-L-M22C-N34-250-1P4-40 Servo-controlled, with piston, NPT3/4" connection. Design structure: Pilot-actuated piston poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Coil preferably on top, Mounting
Product Details
- Type code VZWP
- Mounting position Coil preferably on top
- Valve function 2/2, closed, monostable
- Differential pressure 0.5 bar
- Type of control Pilot-controlled
- Ambient temperature -10 °C ... 35 °C
- Flow rate Kv 8.2 m³/h
- Seals material NBR
- Sealing principle Soft
- Nominal width 25 mm
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
- Duty cycle 100%
- Max. viscosity 22 mm²/s
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number of screw 1.4301
- Product weight 1500 g
- Electrical connection Form A Rectangular design
- Nominal pressure of fitting PN 40
- Permissible voltage fluctuations +/- 10 %
- Temperature of medium -10 °C ... 80 °C
- Leak rate to EN 12266-1 A
- Material number of housing CW617N
- Degree of protection IP65
- Actuation type Electrical
- Fitting connection 3/4 NPT
- Flow direction Non-reversible
- Insulation class H
- Medium pressure 0.5 bar ... 40 bar
- Standard nominal flow rate 8750 l/min
- Switching time off 300 ms
- Material of screws High-alloy stainless steel
- Design Pilot-controlled piston poppet valve
- Type of mounting Line installation
- Manual override None
- Coil characteristics 24 V DC: 6.8 W
- Symbol 00992974
- On switching time 130 ms
- Housing material Cast brass
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
