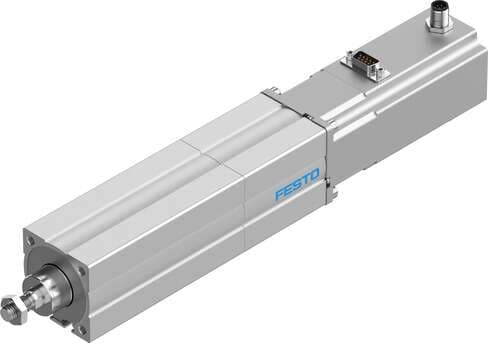

1472501 Festo Electric Actuators

Product Details

• Mounting position
  Any
• Piston rod thread
  M10x1.25
• Screw diameter
  12 mm
• Spindle type
  Ball screw drive
• Rotor position sensor
  Incremental encoder
• Max. speed
  0.18 m/s
• Max. angle of rotation of the piston rod +/-
  1 deg
• Rotor position sensor interface
  RS422 TTL A/B channels + zero index
• Rotor position sensor measuring principle
  Optical
• Nominal operating voltage DC
  24 V
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Max. torque Mz
  3.3 Nm
• Stroke
  50 mm
• Reversing backlash
  100 µm
• Stroke reserve
  0 mm
• Step angle with full step
  1.8 deg
• Protection against torsion/guide
  With plain-bearing guide
• Max. acceleration
  10 m/s²
• Motor nominal current
  4.2 A
• Size
  40
Step angle tolerance
±5%
Type code
EPCO
Motor type
Stepper motor
Duty cycle
100%
Insulation protection class
B
Storage temperature
-20 °C ... 60 °C
Max. torque Mx
0 Nm
Guide value for payload, horizontal
120 kg
Spindle pitch
5 mm/U
Piston rod end
External thread
Design
Electric actuator with ball screw drive
Repetition accuracy
±0.02 mm
CE marking (see declaration of conformity)
As per EU EMC directive
Degree of protection
IP40
Relative air humidity
0 - 85 % Non-condensing
Max. feed force Fx
650 N
Guide value for payload, vertical
60 kg
Basic weight with 0 mm stroke
2585 g
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
0 °C ... 50 °C
Mass moment of inertia JH per meter of stroke
0.1166 kgcm²
Moving mass at 0 mm stroke
415 g
Spindle material
Roller bearing steel
Impact energy in the end positions
4.0E-4 J
Max. torque My
3.3 Nm
Mass moment of inertia JL per kg of payload
0.0064 kgcm²
Electrical connection technology
Plug
Cover material
Wrought aluminum alloy Smooth anodized
Material of cylinder barrel
Wrought aluminum alloy Smooth anodized
Mass moment of inertia JO
0.3325 kgcm²
Additional moving mass per 10 mm stroke
4.9 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Piston rod material
High-alloy stainless steel
Additional weight per 10 mm stroke
55 g
Housing material
Wrought aluminum alloy Smooth anodized
Type of mounting
With internal thread With accessories
Spindle nut material
Steel

Related documents 1472501 Specs
