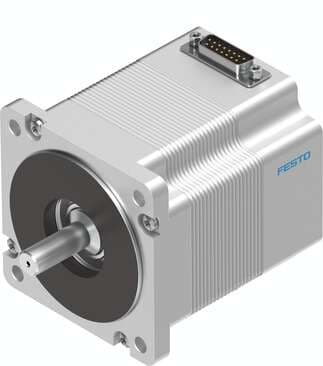

1370482 Festo Stepper Motors

Product Details

• Type code
  EMMS-ST
• Winding inductance phase
  0.45 mH
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Thermal class according to EN 60034-1
  B
• Permissible axial shaft load
  65 N
• Note on materials
  RoHS-compliant
• Max. rotational speed
  2130 1/min
• Insulation protection class
  B
• Ambient temperature
  -10 °C ... 50 °C
• Total output inertia moment
  1 kgcm²
• Rotor mass moment of inertia
  1 kgcm²
• Conforms to standard
  IEC 60034
• Step angle tolerance
  ±5%
• Phase winding resistance
  0.1 Ohm
• Rating class according to EN 60034-1
  S1
• Degree of protection
  IP54
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Permissible radial shaft load
  200 N
• Step angle with full step
  1.8 deg
• Nominal operating voltage DC
  48 V
CE marking (see declaration of conformity)
As per EU EMC directive
Storage temperature
-20 °C ... 70 °C
Motor holding torque
2.5 Nm
Product weight
1950 g
Motor nominal current
9.5 A
Voltage constant, phase
19 mVmin
Relative air humidity
0 - 85 %
Brake holding torque
2 Nm
Electrical connection technology
Plug
