13229 Festo Pneumatic Components

13229 on Powermatic Associates
Festo

Part#:13229

Alt. Part#:GRPO-10-PK-3

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

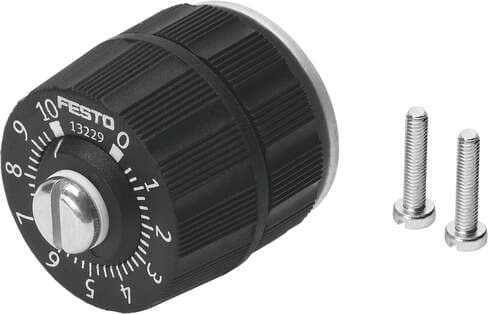

Precision flow control valve GRPO-10-PK-3 is used for precise adjustment of flow rate. Valve function: Throttle function, Pneumatic connection, port 1: PK-3, Pneumatic connection, port 2: PK-3, Type of actuation: manual, Adjusting element: Rotary knob w

Product Details

  • Pneumatic connection 1
    PK-3
  • Valve function
    Flow control function
  • Actuation type
    Manual
  • Standard nominal flow rate in flow control direction from 1bar to 0 bar
    1.65 l/min
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Material of screws
    Steel
  • Type code
    GRPO
  • Mounting position
    Any
  • Standard flow rate in flow control direction 6 -> 0 bar
    5.2 l/min
  • Product weight
    48 g
  • Retaining bracket material
    Wrought aluminum alloy
  • Standard nominal flow rate in flow control direction
    3.8 l/min
  • Housing material
    PA-reinforced
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gas
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Pneumatic connection 2
    PK-3
  • Type of mounting
    Front panel mounting
  • Ambient temperature
    -10 °C ... 50 °C
  • Operating pressure from 2 to 1
    0 bar ... 0.5 bar
  • Seals material
    NBR PVC
  • Adjusting element
    Rotary knob with scale
  • Operating pressure
    0 bar ... 8 bar
  • Symbol
    00991454
  • Temperature of medium
    -10 °C ... 50 °C
  • PK connections material
    Wrought aluminum alloy Brass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
