130620 Festo Pneumatic Fittings

130620 on Powermatic Associates
Festo

Part#:130620

Alt. Part#:QSW-10HL

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in connector QSW-10HL with push-in sleeve. Size: Standard, Nominal size: 6,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Product Details

  • Maritime classification
    See certificate
  • Pack size
    10
  • Nominal width
    6.3 mm
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    9.5 g
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Operating pressure for entire temperature range
    -0.95 bar ... 6 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 1
    Push-in sleeve QS-10
  • Housing material
    PBT
  • Design
    Push-pull principle
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 10 mm
  • Note on materials
    RoHS-compliant
  • Releasing ring material
    POM
  • Type code
    QSW
  • Temperature-dependent operating pressure
    -0.95 bar ... 14 bar
  • Ambient temperature
    -10 °C ... 80 °C
  • Releasing ring color
    Blue
  • Material of tubing seal
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

130620 Related Documents

130620 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock
2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
564817 on Powermatic Associates

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock
153330 on Powermatic Associates

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

5 in stock
132047 on Powermatic Associates

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

Manufacturer warranty

130620 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 130620 with other Pneumatic Fittings products

Maritime classification

Pack size

Nominal width

Mounting position

Corrosion resistance clas...

Product weight

Material of tube retainin...

Size

Operating pressure for en...

Information on operating ...

Selected product

130620
Backordered
130620
Festo

push-in connector QSW-10HL with push-in sleeve. Size: Standard, Nominal size: 6,3 mm, Assembly posit...

Maritime classificationSee certificate

Pack size10

Nominal width6.3 mm

Mounting positionAny

Corrosion resistance class (CRC)1 - Low corrosion stress

Product weight9.5 g

Material of tube retaining clawHigh-alloy stainless steel

SizeStandard

Operating pressure for entire temperature range-0.95 bar ... 6 bar

Information on operating and pilot mediaOperation with oil lubricati...

190649
4 in stock

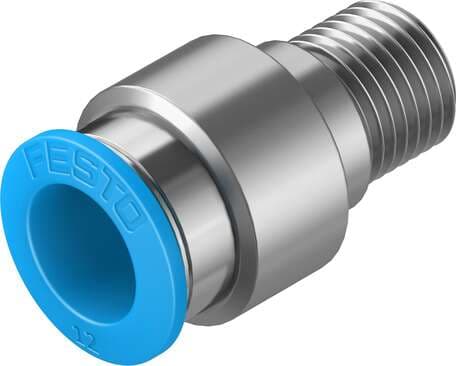

190649
Festo

push-in fitting QS-1/4-12-I male thread with internal hexagon socket. Size: Standard, Nominal size: ...

Maritime classificationSee certificate

Pack size10

Nominal width6.3 mm

Mounting positionAny

Corrosion resistance class (CRC)1 - Low corrosion stress

Product weight-

Material of tube retaining claw-

SizeStandard

Operating pressure for entire temperature range-0.95 bar ... 6 bar

Information on operating and pilot media-

153016
8 in stock

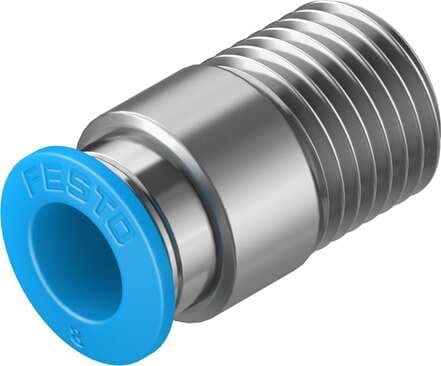

153016
