1152507 Festo Actuator Accessories

1152507 on Powermatic Associates
Festo

Part#:1152507

Alt. Part#:DYEF-S-M5-Y1

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

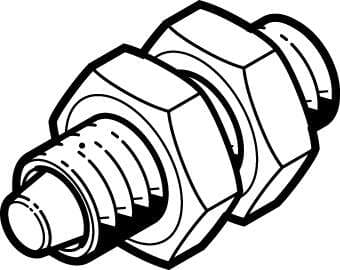

shock absorber DYEF-S-M5-Y1 Size: M5, Stroke: 1,5 mm, Cushioning: P cushioning without metal fixed stop, Assembly position: Any, Position detection: No

Product Details

  • Stroke
    1.5 mm
  • Mounting position
    Any
  • Seals material
    NBR
  • Type code
    DYEF
  • Max. impact velocity
    0.8 m/s
  • Product weight
    2 g
  • Size
    M5
  • Position sensing
    None
  • Ambient temperature
    0 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Housing material
    High-alloy steel
  • Cushioning
    Elastic cushioning rings/pads at both ends, without fixed metal stop
  • Cushioning length
    1.5 mm
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Max. energy absorption per stroke
    0.05 J
  • Type of mounting
    With lock nut

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1152507 Related Documents

1152507 DataSheet.pdf
