1002536 Festo Process & Media Valves

Name: 1002536
Brand: Festo

Part#:1002536

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-B-N34-160-H3B1-50-16

Product Lifecycle:Active

Get a quick Quote!

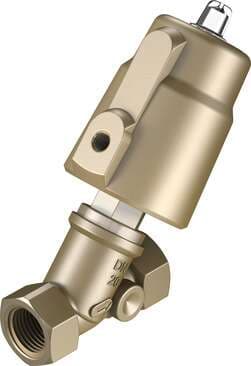

angle seat valve VZXF-L-M22C-M-B-N34-160-H3B1-50-16 Pneumatically actuated angle seat valve in red brass. Under seat version, safety position closed, NPT thread, nominal width 3/4". Design structure: Poppet valve with piston actuator, Type of actuation: p

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1002536 Festo price in the box on the right side or send a quick quote.

Product Details

Spindle seal material
NBR
Type code
VZXF
Mounting position
Any
Nominal width
16 mm
Reset method
Mechanical spring
Valve function
2/2, closed, monostable
Nominal pressure of fitting PN
16
Pneumatic connection
Internal thread G1/8
Temperature of medium
-10 °C ... 80 °C
Design
Poppet valve with piston actuator
Flow direction
Under valve seat, for gaseous and liquid media
Operating pressure
6 bar ... 10 bar
Medium
Vapor Neutral liquids
Valve housing material
Red brass
Material number, fitting housing
CC499K
Actuation type
Pneumatic
Type of mounting
Line installation
Cable connection
Threaded sleeve NPT3/4 as per ANSI/ASME B 1.20.1
Exhaust air function
Without flow control option
Symbol
00991367

Max. viscosity

600 mm²/s

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Seat seal material

PTFE

Sealing principle

Soft

Medium pressure

0 bar ... 16 bar

Type of control

Externally controlled

Ambient temperature

-10 °C ... 60 °C

Drive housing material

Brass

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Flow rate Kv

5.2 m³/h

Product weight

1300 g

Corrosion resistance class (CRC)

1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Relevant products

31310

Verified stock: 90
