1002521 Festo Process & Media Valves
Part#:1002521
Alt. Part#:VZXF-L-M22C-M-B-G112-350-M1-V4V4T-50-6
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

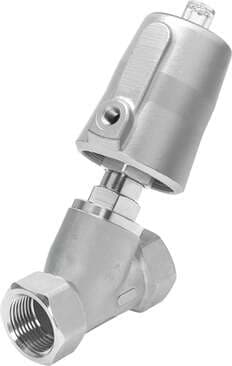

angle seat valve VZXF-L-M22C-M-B-G112-350-M1-V4V4T-50-6 Pneumatically actuated angle seat valve in stainless steel. Under seat version, safety position closed, G thread, nominal width 1 1/2". Design structure: Poppet valve with piston actuator, Type of ac
Product Details
- Actuation type Pneumatic
- Medium pressure 0 bar ... 6 bar
- Medium Vapor Neutral liquids
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Seat seal material PTFE
- Mounting position Any
- Nominal width 35 mm
- Valve function 2/2, closed, monostable
- Pneumatic connection Internal thread G1/8
- Temperature of medium -40 °C ... 200 °C
- Material number, fitting housing 1.4408
- Product weight 2500 g
- Type code VZXF
- Type of mounting Line installation
- Nominal pressure of fitting PN 40
- Symbol 00991367
- Flow rate Kv 17.5 m³/h
- Valve housing material Cast stainless steel
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Sealing principle Soft
- Cable connection Threaded sleeve G1 1/2 as per DIN ISO 228
- Exhaust air function Without flow control option
- Type of control Externally controlled
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Spindle seal material PTFE
- Drive housing material High-alloy stainless steel
- Design Poppet valve with piston actuator
- Flow direction Under valve seat, for gaseous and liquid media
- Reset method Mechanical spring
- Operating pressure 6 bar ... 10 bar
- Max. viscosity 600 mm²/s
- Ambient temperature -10 °C ... 60 °C
- CE marking (see declaration of conformity) as per EU pressure equipment directive
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
