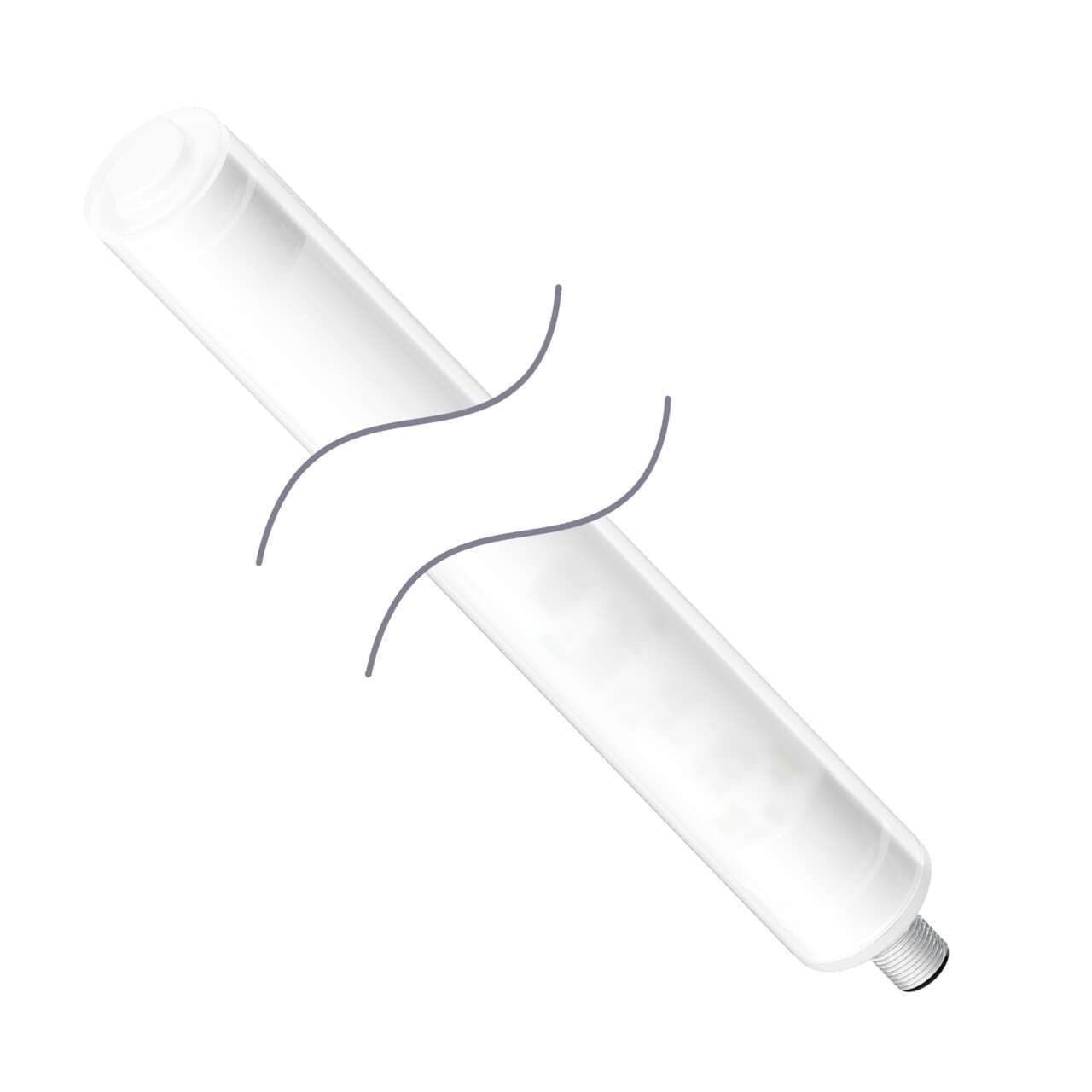

WLS27XWW850DSQ Banner Signal Towers

Name: WLS27XWW850DSQ
Brand: Banner
Price: 465 USD
Availability: BackOrder

Banner WLS27XWW850DSQ WLS27 Work Light Strip; Diffused Window; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Warm White; 4-pin M12 Integral QD

Part#:WLS27XWW850DSQ

Manufacturer:Banner

Alt. Part#:95962

Product Lifecycle:Active

Get a quick Quote!

WLS27 Work Light Strip; Diffused Window; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Warm White; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS27XWW850DSQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
635.0288 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Audible
No
Modbus RTU
No
IO Link
No
Feature: Quick Disconnect
Yes
Multi-Color Device
Single Color On
Feature: Chemical Resistant
Yes
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Primary Window Material
Copolyester Diffused
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Supply Voltage
12-30 V dc
Illuminated Length (LxWxH mm)
850.0
Max Op. Temperature (°C)
70
Environmental Rating
IP66; IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
27.0 x 914.5

Number of Input Pins/Conductors

Dimming Option

High-Low-Off

Color 1 - Wavelength/Color Temp/Coordinates

3000K (Warm)

Max Current Color (mA)

2400

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Lumens Color 1

2400

Animation Option 1

Solid On

Color Option 1

White

Color Technology

Standard LED

Product Size (mm)

Primary Housing Material

FDA Copolyester

Illumination

Yes

Housing Style

Linear Strip

Number of Colors / Segments

Mounting Thread

No Thread

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS27XWW850DSQ Description

Banner Engineering WLS27XWW850DSQ is a single color series industrial sealed LED task light designed for a variety of applications. This task light features diffused window 1-color Warm White (WW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal voltage of 24Vdc. It measures 850mm in length and 27mm in diameter, constructed from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and suitability for diverse environments. The cylindrical linear strip is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. The task light operates efficiently in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control, consumes 2.4A of current, and provides a luminous flux of 2400 lumens, ensuring bright and focused illumination for various tasks.
